Internet of Things (IoT) Gateway Converts CAN Bus Data to WiFi, Bluetooth, BLE
The Californer/10133293

GREENFIELD, Mass. - Californer -- The ESP32 is a series of low-cost, low-power system-on-chip microcontrollers with integrated WiFi and dual-mode Bluetooth. The ESP32 series employs a Tensilica Xtensa LX6 microprocessor in both dual-core and single-core variations and includes built-in antenna switches and an RF balun power amplifier, low-noise receive amplifier, filters, and power management modules.

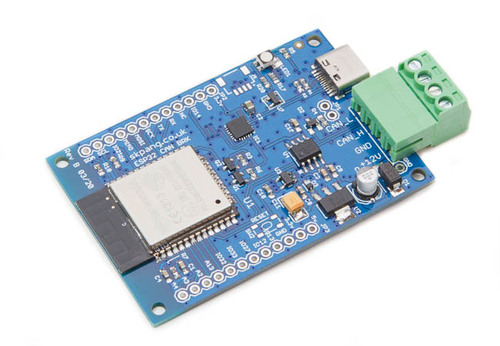

The ESP32 WiFi, Bluetooth Classic, BLE, CAN Bus Module comes with an onboard ESP32 WROOM-32 WiFi, Bluetooth Classic, BLE Module, and a CAN Bus port with a transceiver. Onboard is an RGB LED, IO pins on a 0.1" pad.

More on The Californer

• Car Wash Deal in Downey CA Prices Starting from $8
• Dr. Vincent Malfitano Elected to Central Council of The Italian Catholic Federation, National Gov
• Your Body Isn't Broken—It's Out of Balance: The New Book Revealing the Blueprint to Restore Hormone Balance, Sleep, Gut & Metabolic Health
• Long Beach Recognizes September as National Preparedness Month, Relaunches Program to Connect Neighborhoods to Disaster Planning Resources
• SEEAG Adds Santa Barbara County Office, Student & Community Agriculture Learning Programs

Features

• 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS
• Integrated 512 KB SRAM
• Integrated 802.11b/g/n HT40 WiFi transceiver, baseband, stack and LWIP
• Integrated dual-mode Bluetooth (classic and BLE)
• 4 MByte flash included in the WROOM32 module
• Onboard PCB antenna
• Programming via USB-C connector
• CAN Bus transceiver
• SPI, IIC, I2S, UART ports accessible through onboard connections
• ADC, DAC channels accessible through onboard connections
• External power supply range of 4.5VDC to 46 VDC (nominal: 12 VDC) with reverse polarity protection
• Extended operating temperature range of -40C to +85C

The ESP32 WiFi, Bluetooth Classic, BLE, CAN Bus Module With 3.5" Touch LCD comes with onboard ESP32 WROOM-32 WiFi, Bluetooth Classic, BLE Module, and a CAN Bus transceiver.

Also built-in is an RGB LED plus a 3.5" capacitive touch screen controlled via SPI bus.

More on The Californer

• California claims victory – again – over Huntington Beach as appeals court rules against city's NIMBY violations of state law
• The Great Junk Hunt Returns to Roseville – A Vintage Shopping Adventure Awaits!
• Erdos Technologies CEO Dan Herbatschek Emphasizes the Importance of Software in Helping Companies Make More Intelligent Decisions on Inventory Flow and Management
• MyNamePlayer Empowers Educators to Create Inclusive Classrooms Through Correct Name Pronunciation
• Long Beach Seeks Volunteers for 41st Annual California Coastal Cleanup Day, September 20

The programming is achieved through the USB-to-Serial converter with a USB-C connector, automatic bootloader, and reset.

The board can be powered by the USB port or via an external 7 to 24 VDC supported by the onboard SMPS supply.

Features

• 240 MHz dual-core Tensilica LX6 microcontroller with 600 DMIPS
• Integrated 520 KB SRAM
• Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
• Integrated dual-mode Bluetooth (classic and BLE)
• 4 MByte flash include in the WROOM32 module
• Onboard PCB antenna
• Programming via USB-C connector
• CAN Bus transceiver
• 480x320 3.5" capacitive touch screen
• RGB LED
• Power by USB or external 7 to 24 VDC with onboard SMPS supply

Both modules come with extensive documentation, i.e., user manual, schematics, and programming samples.

Copperhill Technologies Corporation's focus is on the development and sales of embedded systems for Controller Area Network, SAE J1939, and NMEA 2000. Copperhill Technologies is a member of SAE (Society of Automotive Engineers) and NMEA.
