NMEA 2000 Development and Prototyping Boards for Marine Applications
The Californer/10115241

GREENFIELD, Mass. - Californer -- The NMEA 2000 standard defines a low-cost, modest capacity, bi-directional, multi-transmitter, multi-receiver instrument network. The hardware layer is based on CAN (Controller Area Network). Typical data on an NMEA 2000 network include position latitude and longitude, GPS status, steering commands to autopilots, waypoint lists, wind sensor data, engine sensor data, depth sounder sensor data, and battery status data.

The PICAN-M (M = Marine) is a Raspberry Pi HAT with NMEA 0183 and NMEA 2000 connection. The NMEA 0183 (RS422) port is accessible via a 5-way screw terminal. The NMEA 2000 port is accessible via a Micro-C connector. The board comes with a 3A SMPS (Switch Mode Power Supply), allowing to power the Raspberry Pi plus HAT from an onboard power source (12 VDC).

More on The Californer

• Human Platelet Isolation Assay Kit
• San Jose: FLASH REPORT #149 - COVID-19 Response and Recovery
• San Francisco: Mayor London Breed Announces $500 Stimulus for Lower-Wage Workers and Families
• INVESTIGATION ALERT: The Schall Law Firm Announces it is Investigating Claims Against Infinity Q Capital Management LLC and Encourages Investors with Losses of $100,000 to Contact the Firm
• Get ready for Spring Break with a poem/potential song lyrics called "The New Coronavirus Blues"

The PICAN-M HAT supports marine applications such as OpenCPN (Open Chart Plotter Navigator), a free software project to create a concise chart plotter and navigation software for use underway or as a planning tool. Signal K is a modern and open data format for marine use. Built on standard web technologies, including JSON, WebSockets, and HTTP, Signal K provides a method for sharing information in a way that is friendly to WiFi, cellphones, tablets, and the Internet. CANBoat represents a suite of command-line driven programs that work with a boat's NMEA 2000 (CAN Bus) networks.

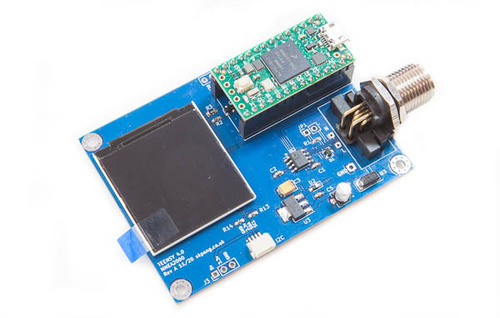

The Teensy 4.0 With NMEA 2000 Connector And 240 x 240 IPS LCD is an Arduino-compatible microprocessor system that comes with a 240x240 pixels IPS LCD and a Micro C NMEA 2000 connector. The board receives power through the 12 VDC NEMA 2000 connector that feeds an onboard 5 VDC regulator. There is also a 4-way 1mm (Qwiic) IC2 connector for external sensors. The example code provided with the board reads data from an NMEA 2000 wind sensor and a temperature sensor and displays the reading on the LCD.
